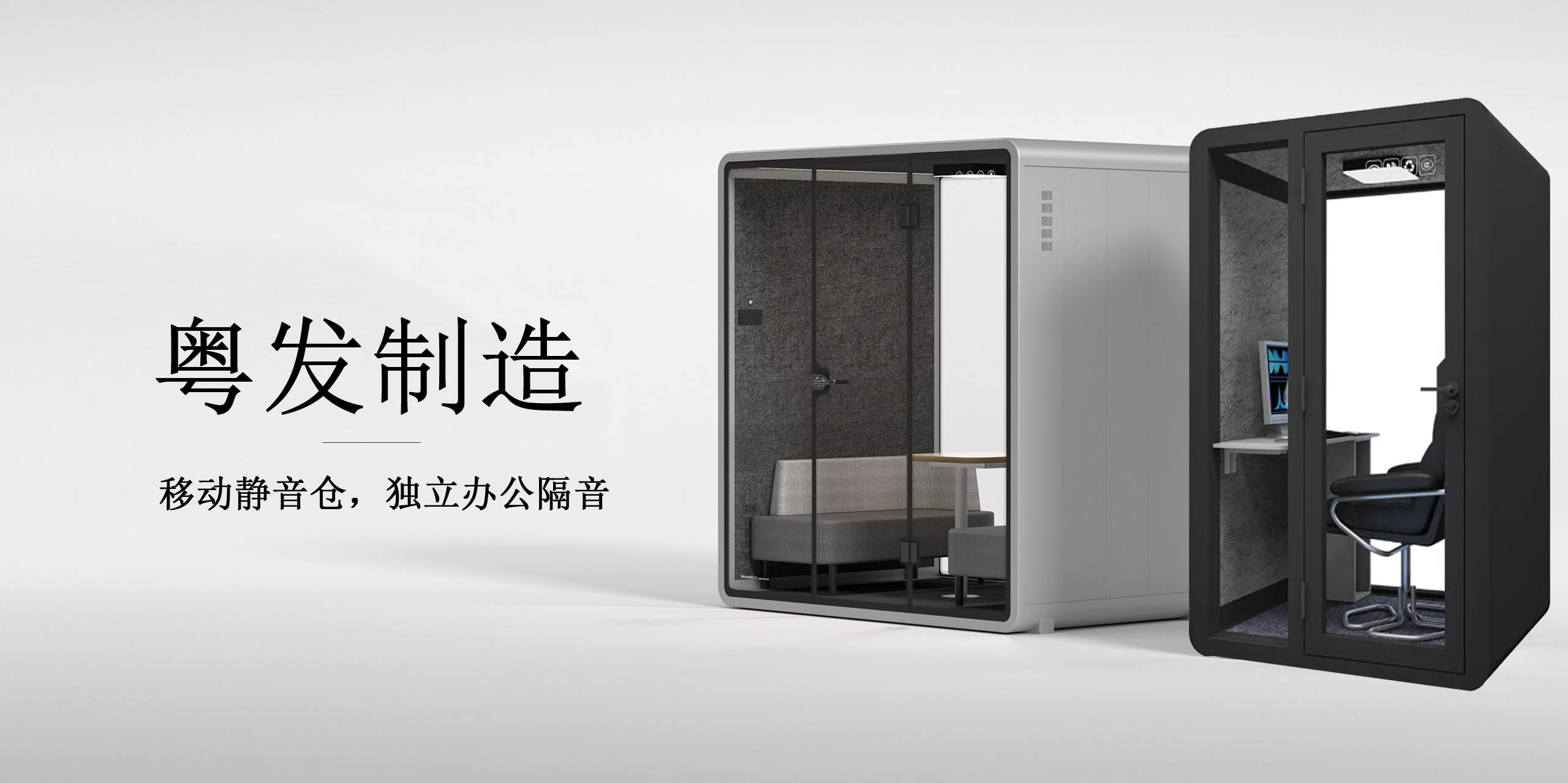

Sound insulation cabin model
BOOTH MODEL
Yuefa Soundproof Cabin
YUEFA BOOTH

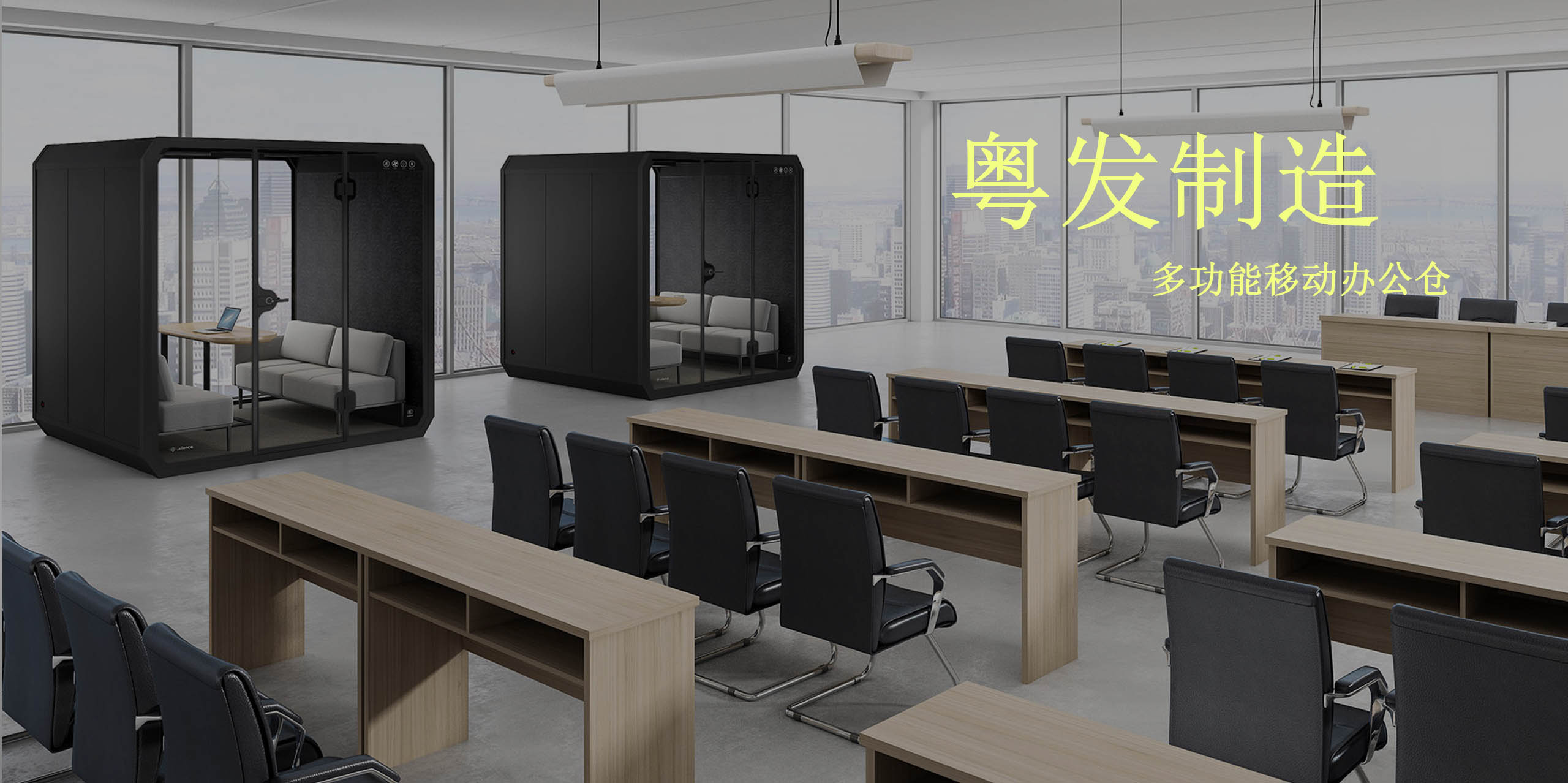

Application
PRODUCT APPLICATION
Product details
PRODUCT DETAIL

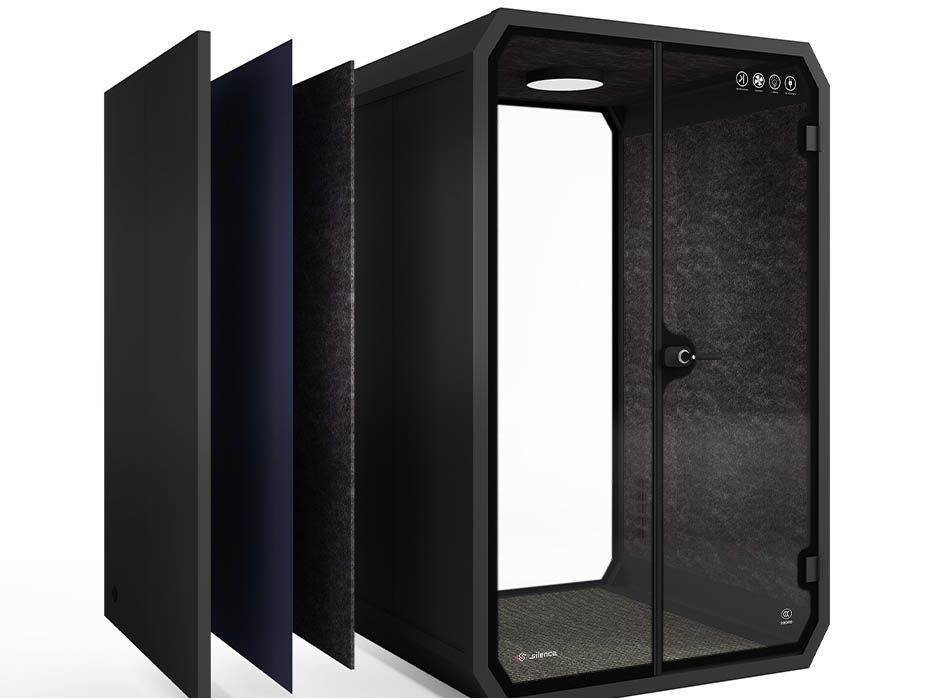

soundproof
The soundproof cabin is made of 38mm thick double-layer aluminum honeycomb panels，
The surface of the aluminum plate is covered with high-density damping sound insulation felt to meet the sound insulation requirements，
The interior is matched with acoustic materials to meet the requirements of the acoustic environment。
Design valueRW+Ctr35dB(±5dB)andRT0.25(±0.1s)

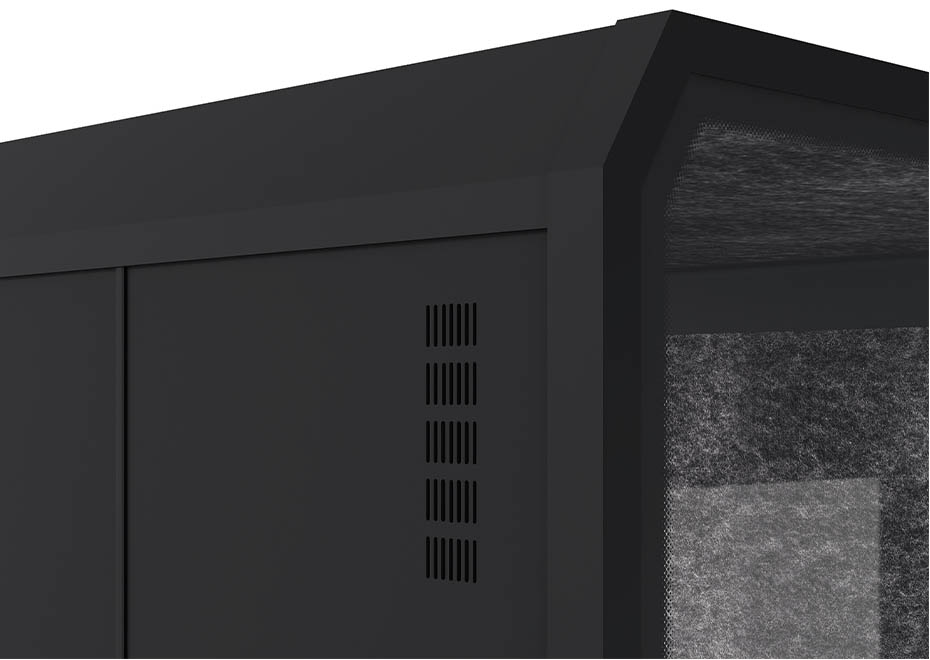

Fresh air
The design of multiple sound barriers not only solves the problem of sound leakage, but also,
Significantly reduces the noise of the fresh air system,
Reduced sound interaction inside and outside the cabin,
The cabin air can be completely updated every three minutes.

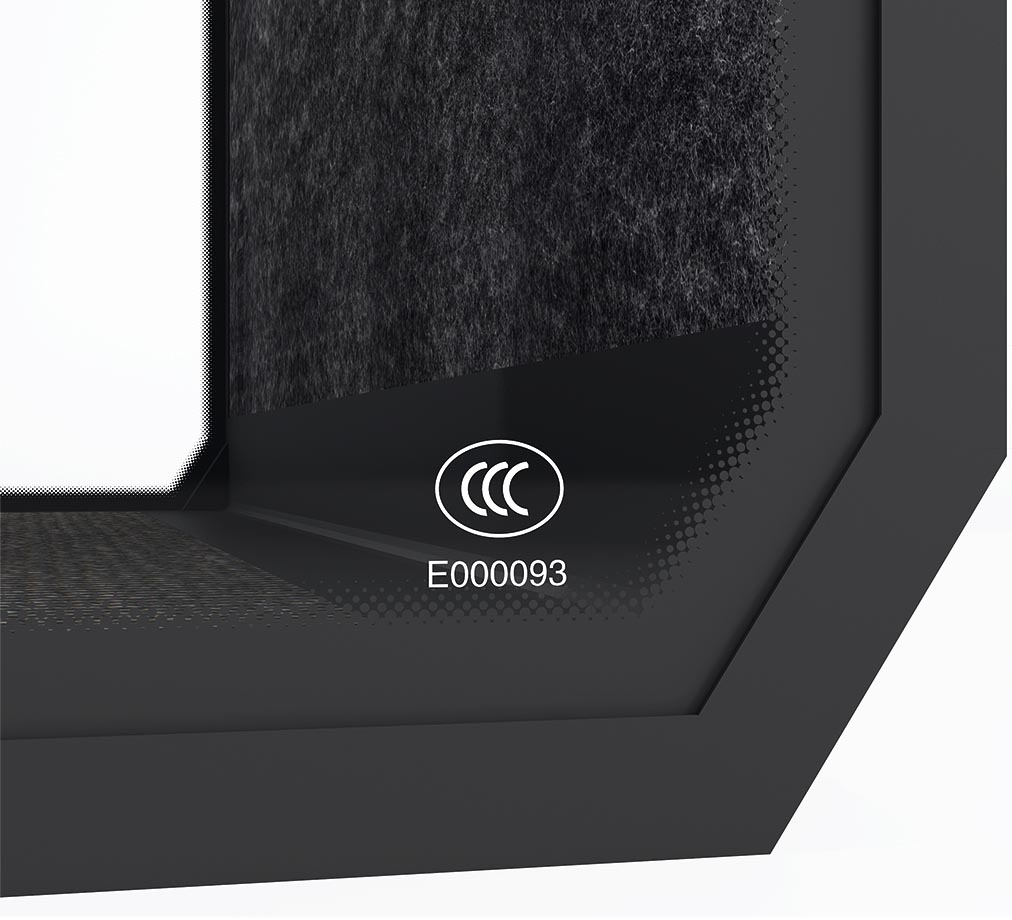

Soundproof glass
The soundproof cabin adopts train style soundproof tempered glass,
While meeting the sound insulation requirements,
Meet the safety and stability of installation and use.

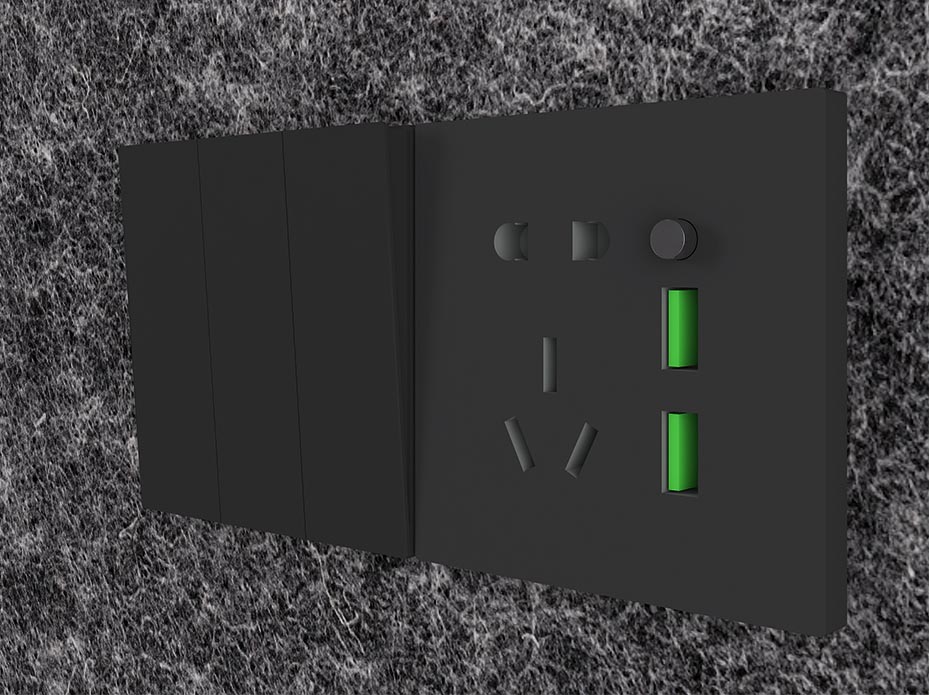

power supply
Adapted to 100-240V/50-60Hz and 12V ー USB power supply system
Complies with mainstream equipment and energy environment usage both inside and outside the cabin.
The three control switches control one lighting lamp and two exhaust fans respectively.

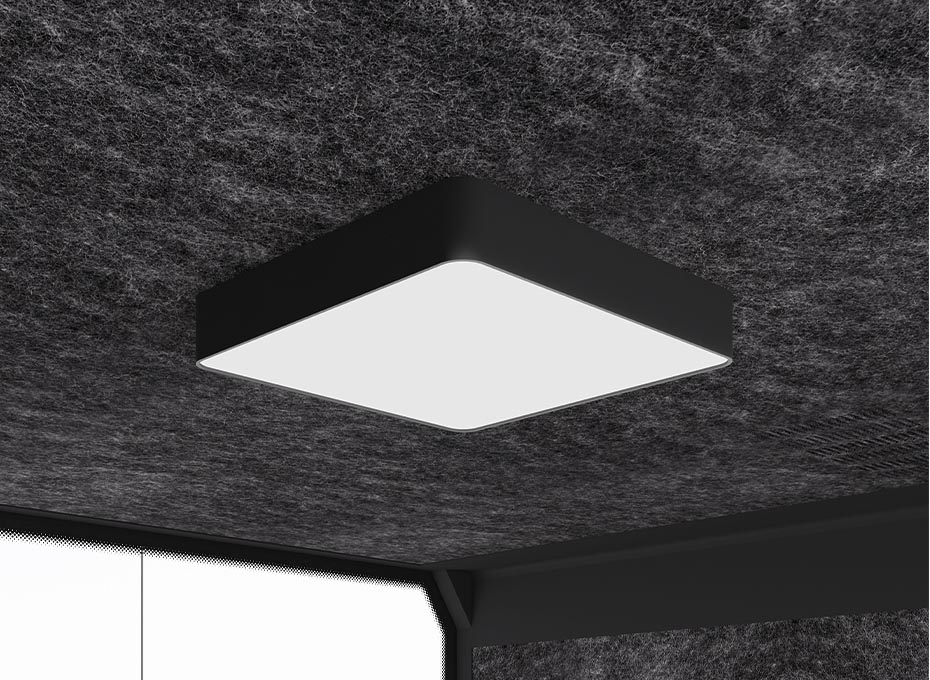

lighting
Cabin 4000K natural light color temperature LED central lighting system
The standard 150LX lighting meets normal usage needs,
Professional lighting requires a pre installed expandable power supply in the cabin.

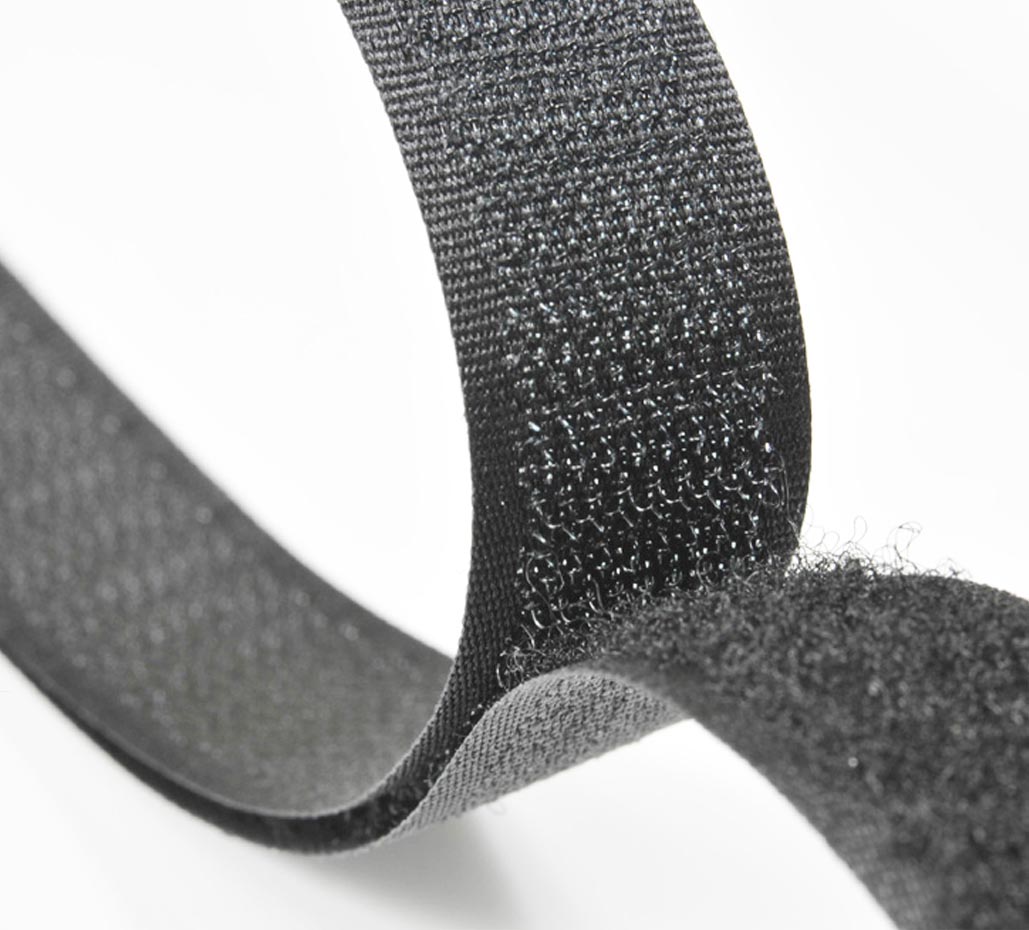

Velcro installation
Velcro straps should be used for the installation of acoustic materials on the back,
Environmental protection and odorless testing shall be conducted in accordance with the standard of "Inspection Method for Prohibited Azo Dyes in Imported and Exported Dyed Textiles and Leather Products",
Complies with European ROHS standards.
Stable and fast installation facilitates later recycling.

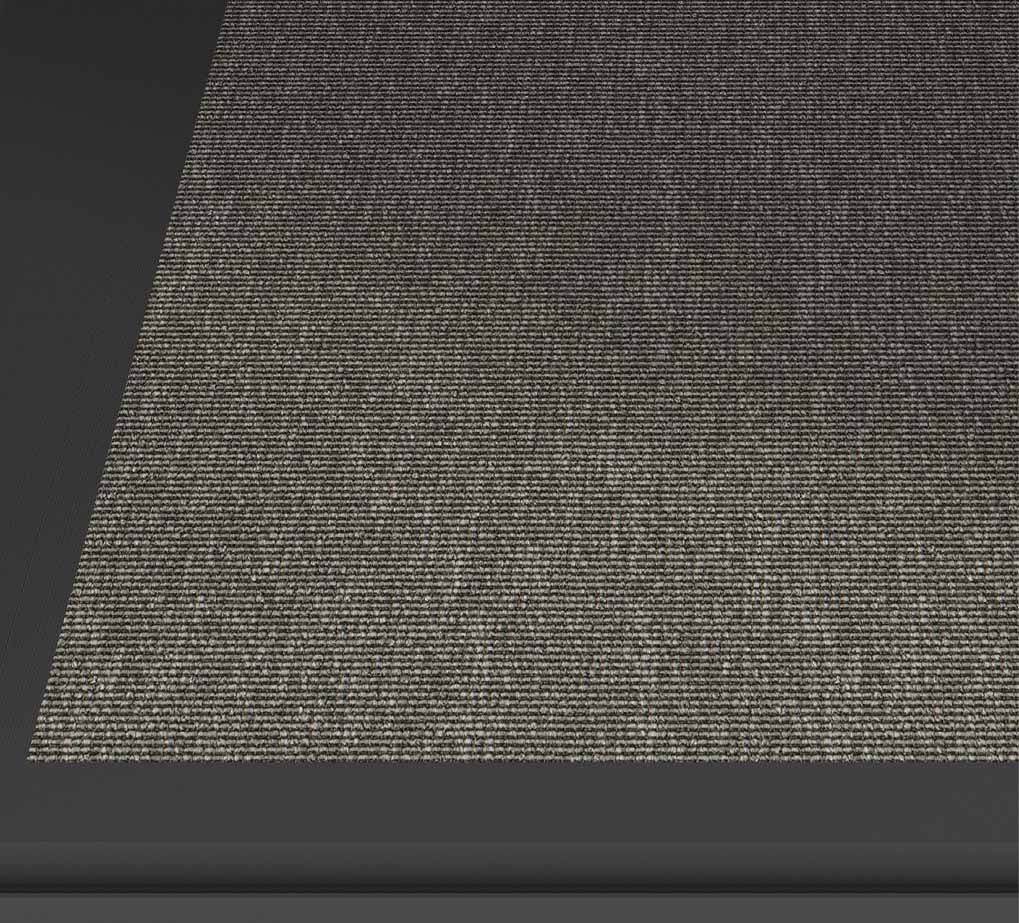

Nylon carpet
We use custom sized nylon carpets,
Each cabin only needs one carpet to be fully covered.
The embedded installation method ensures the level of the ground inside the cabin and is not easy to slide.
Meanwhile, nylon carpets have excellent sound absorption performance, meeting our requirements for acoustic design.
External material
Using 38mm thick double-layer aluminum honeycomb panel, the surface of the aluminum panel is covered with high-density damping and sound insulation felt

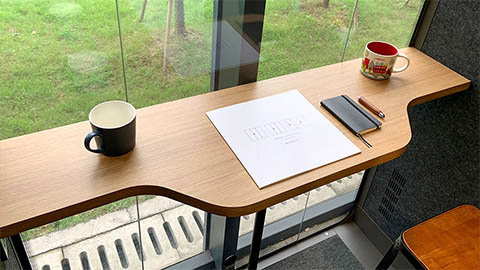

table
Optional
Surface: 1340mm (width) x 400mm (depth)
Thickness: 30mm
Product model
PRODUCT MODEL
Accommodation capacity：
1人
Specification and model：
S
Appearance dimensions：
D1010*W972*H2272mm
Internal dimensions:
D900*W840*H2140mm
Application scenarios：
Telephone booth/office/saxophone

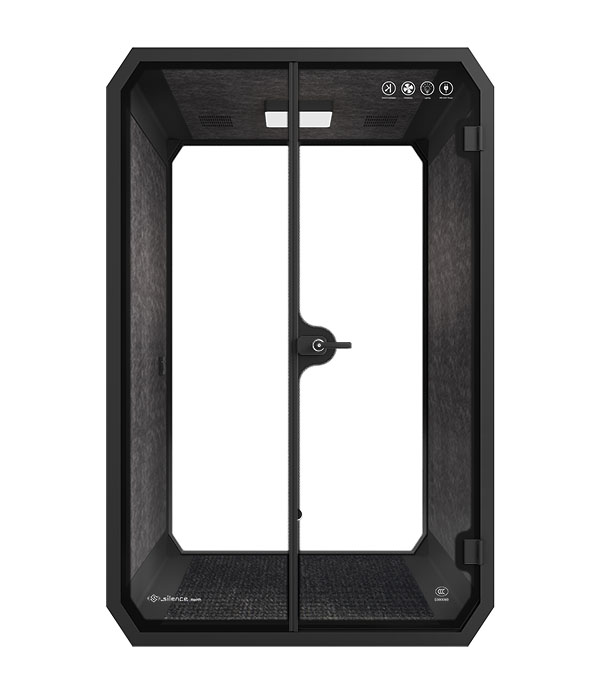

Accommodation capacity：
2人
Specification and model：
M
Appearance dimensions：
D1310*W1472*H2272mm
Internal dimensions:
D1200*W1340*H2140mm
Application scenarios：
Telephone booth/office/negotiation room/violin

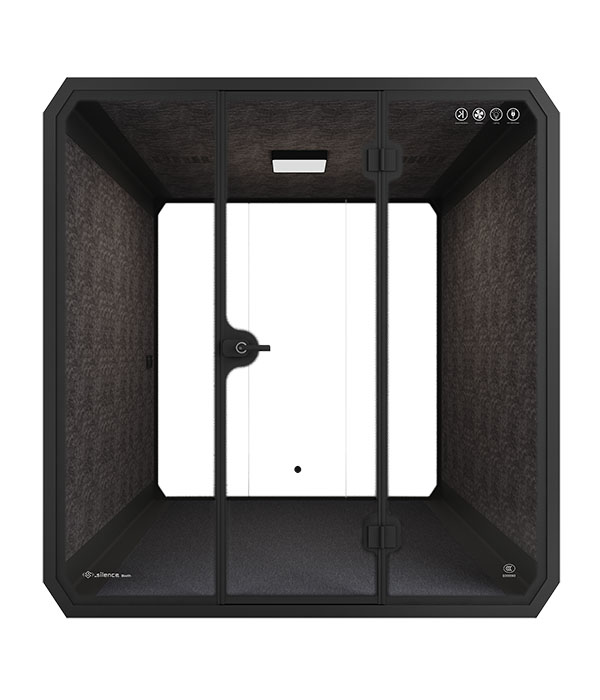

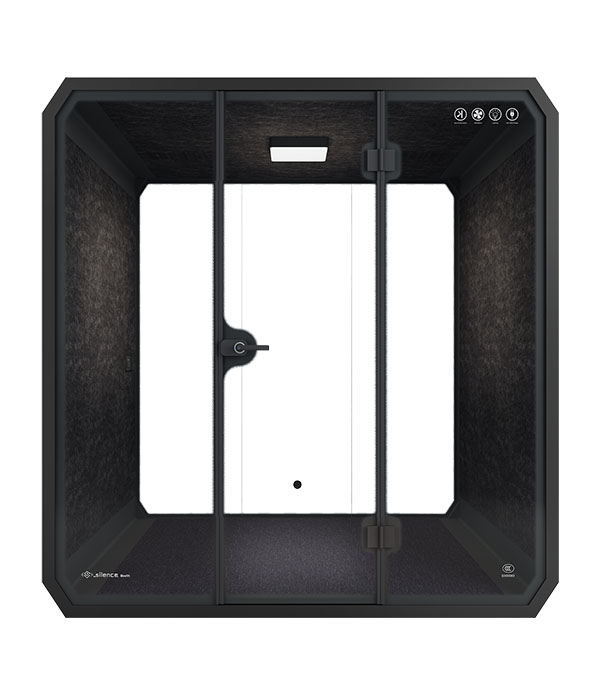

Accommodation capacity：
4人
Specification and model：
L
Appearance dimensions：
D1610*W2172*H2272mm
Internal dimensions:
D1500*W2040*H2140mm
Application scenarios：
Negotiation Room/Office/Recording Room/Piano Room
Accommodation capacity：
6人
Specification and model：
XL
Appearance dimensions：
D2136*W2172*H2272
Internal dimensions:
D2100*W2040*H2140
Application scenarios：
Meeting room/Negotiation room/Recording room/Drum stand
Product parameters
Product parameters
Colour variations：
Cabin equipment：
*Adapted to 100-240V/50-60Hz and 12V ー USB power supply system
*Cabin 4000K natural light color temperature LED central lighting system
*The design of multiple sound barriers solves the problem of sound leakage while greatly reducing the noise of the fresh air system
*Infrared induction starting device+manual switch
*Emergency safety hammer
Facility selection：
* Bar counter table* 1
* High chair* 1
* Office chairs * 1
* Table* 1
* Display bracket* 1
Description: Bluetooth audio, matte film, and mobile kit can be purchased as needed. The weight does not include supporting furniture, appliances, or equipment.
